DPA UPScale ST (Modular) 10-200kW - ABB
Three-phase modular UPS system from 10 – 200 kW

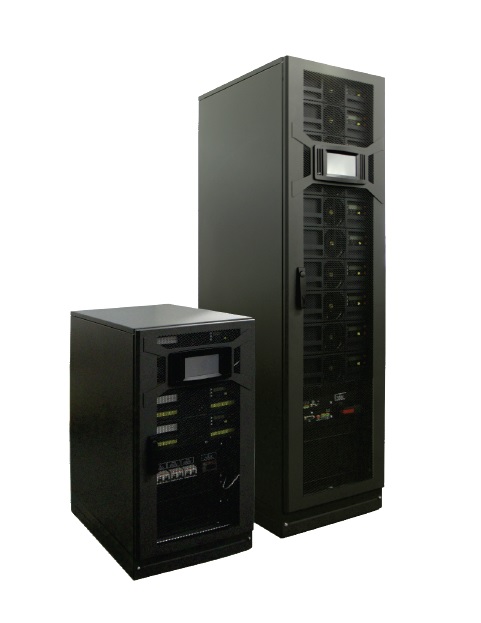

ABB’s DPA UPScale ST S2 is a modular UPS designed for low-medium power applications. The UPS offers all-in-one power protection solution that includes frame, UPS, battery and communications. The system delivers power protection from 10 kW to 200 kW in a single frame and growing mid-size infrastructures, it can be paralleled horizontally to increase the capacity up to 400kW.This fully scalable and easily maintained UPS gives you unparalleled uptime and energy efficiency.
Key features:
• Decentralized Parallel Architecture
• 99.9999% (6 nines) availability
• Redundant capacity (N+1) per frame
• Full vertical and horizontal scalability up to 400kW
• Best-in class efficiency performance 96%
• Small foot print with maximum power density 472kW/m2
• Fast maintenance and seviciability
With DPA technology each UPS module has its own independent
• logic control
• control panel
• rectifier
• inverter
• battery charger
• static bypass
|
General data |
|
|
System power range |
10 kW – 200 kW |
|
UPS module rated power |
10 / 20 kW |
|
UPS frame rated power |
80 / 60 / 120 / 200 kW |
|
UPS output rated PF |
1.0 |
|
Max.power per frame |
200 kW / 10 modules |
|
Max no. of parallel modules across frames |
20 modules / up to 4 frames |
|
Wiring |
3ph + N + PE |
|
UPS type |
Modular (DPA) |
|
Topology |
True online double conversion |
|
Input |
|
|
Nominal input voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage range |
150/204 - 264/460 VAC (load dependent) |
|
Frequency range |
35-70 Hz |
|
Current THD at 100% load |
< 3 % |
|
Power Factor at 100% load |
≥ 0.99 |
|
Output |
|
|
Rated output voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage THD (with linear load) |
< 1.5 % |
|
Frequency |
50 or 60 Hz (selectable) |
|
Efficiency |
|
|
Online double conversion |
Up to 96% |
|
Eco-mode |
98% |
|
Communications |
|
|
User interface module level |
LCD control panel + mimic diagram |
|
User interface system level |
Graphical display (option) |
|
Communication ports |
USB, RS-232, SNMP slot, potential-free contacts |
|
Software |
Monitoring and shutdown software available as option |
|
Compliancy |
|
|
Safety |
IEC/EN 62040-1 |
|
EMC |
IEC/EN 62040-2 |
|
Performance |
IEC/EN 62040-3 |
|
Manufacturing |
ISO 9001:2008, ISO 14001:2004 |
Technical specifications are subject to change without notice.
