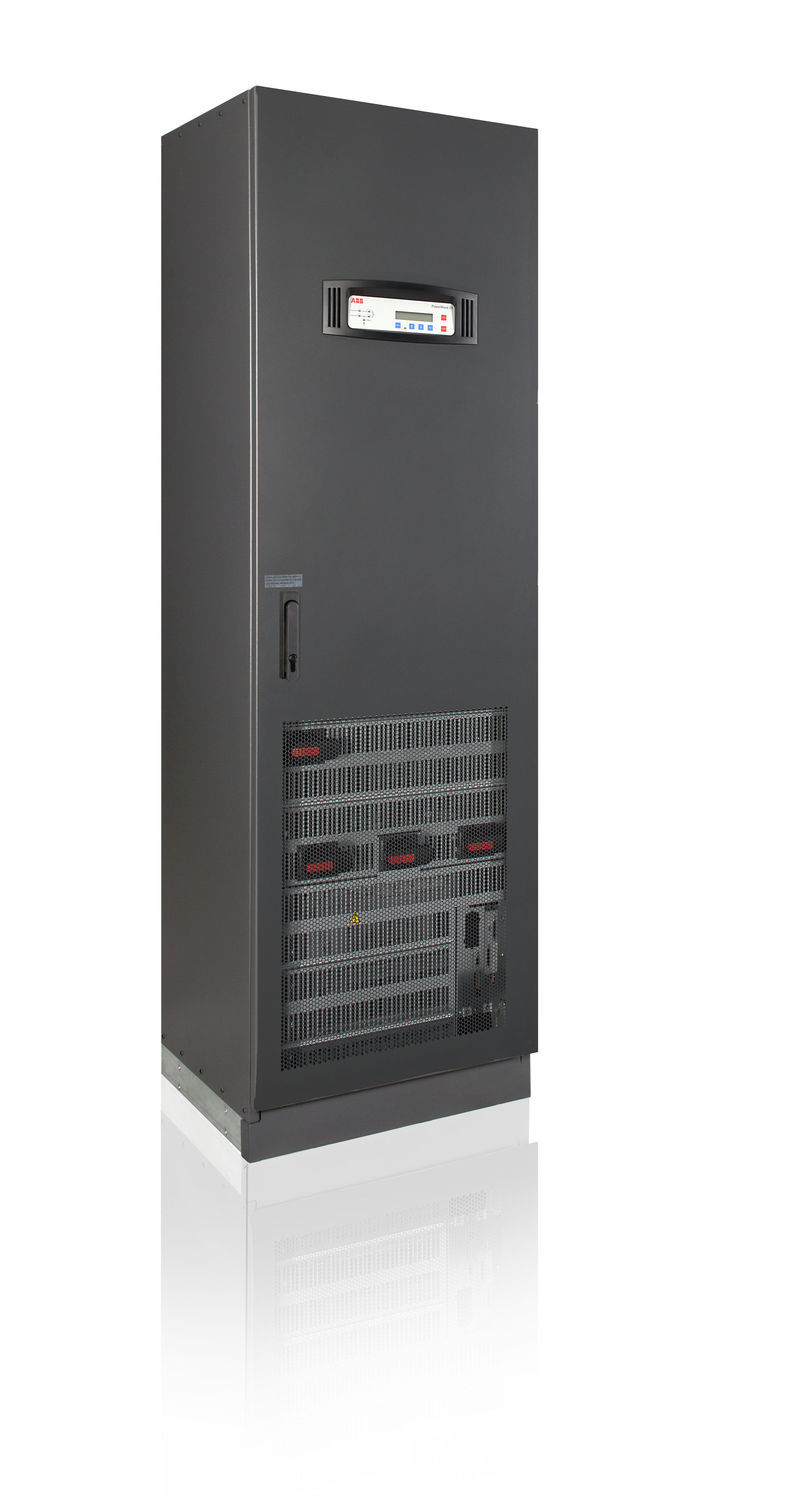

PowerWave 33 S3 60-120kW - ABB

Lượt xem : 1529
Đánh giá sản phẩm :

Three-phase UPS from 60 – 120 kW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

Efficient and reliable power protection for IT equipment in small- and medium-sized organizations

PowerWave 33 Series 3 continues ABB’s tradition of applying state-of-the-art technology to UPS products, and delivering the best combination of energy efficiency and overall power performance in the industry.

Offering maximum power protection, the PowerWave 33 Series 3 (S3) has a small footprint and uses less energy than comparable products – thus delivering significant cost savings for the user. The PowerWave 33 S3’s exceptional design meets all the modern requirements involved in building and operating energy-efficient and environmentally friendly centers. The PowerWave 33 S3 employs transformer-less double conversion UPS topology and is available in ratings from 60 to 120 kW.

Key features:

• Reliable double conversion UPS ensures the critical load is never affected by utility disturbances.

• High, 96 percent efficiency in double conversion mode reduces running costs without compromising reliability.

• Space-saving mechanical design has a footprint of only 0.30 m² and front-to-top airflow allows installation against the wall.

• Front service access reduces time needed for maintenance.

• Up to 10 UPSs in parallel can give additional capacity and/or redundancy.

• Integrated system – this UPS has a maintenance bypass switch, single or dual input feed configurations as well as other features, integrated into the system.

• Highly flexible battery configuration supports usage of 42-48 battery blocks in a string. This allows optimizing the battery and reduces the need to oversize.



General data

System power range

60 kW – 120 kW

UPS frame rated power

60 / 80 / 100 / 120 kW

UPS output rated PF

1.0

Max. no of parallel frames

Up to 10 units

Wiring

3ph + N + PE

UPS type

Standalone tower

Topology

True online double conversion



Input

Nominal input voltage

220/380, 230/400, 240/415 VAC

Voltage range (230/400VAC)

< 100 %  load: -10 %, +15 % of nominal voltage
< 80 %  load: -20 %, +15 % of nominal voltage
< 60 %  load: -30 %, +15 % of nominal voltage

Frequency range

35-70 Hz

Current THD at 100% load

≤ 4 %

Power Factor at 100% load

0.99



Output

Rated output voltage

220/380, 230/400, 240/415 VAC

Voltage THD (with linear load)

<2%

Frequency

50 or 60 Hz (selectable)



Efficiency

Online double conversion

Up to 96%

Eco-mode

99%



Communications

User interface

LCD + mimic diagram

Communication ports

USB, RS-232, SNMP slot, potential-free contacts

Software

Monitoring and shutdown software available as option



Compliancy

Safety

IEC/EN 62040-1

EMC

IEC/EN 62040-2

Performance

IEC/EN 62040-3

Manufacturing

ISO 9001:2008, ISO 14001:2004

 Technical specifications are subject to change without notice.
