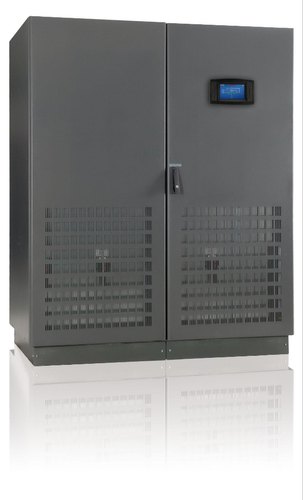

PowerWave 33 S3 160-500kW - ABB
Three-phase UPS from 160 – 500 kW
ABB has always set global standards in uninterruptible power supply (UPS) solutions. The latest generation of PowerWave 33 continues ABB’s tradition of applying state-of-the-art technology to UPS products, and delivering the best combination of energy efficiency and overall power performance in the industry.
Key features:
• Unity output power factor (kVA=kW)
• Output power factor range 0.9 lag to 0.9 lead supported without de-rating
• Best-in-class compactness
• Front access
• Input power factor PF = 0.99
• Up to 96% efficiency in double conversion mode and 99% efficiency in eco-mode
• Ripple-free battery charging increases battery life
• Wide input voltage range (–20%/+15%) at full load
• Up to 10 units in parallel configuration
|
General data |
|
|
System power range |
160 kW – 500 kW |
|
UPS frame rated power |
160 / 200 / 250 / 300 / 400 / 500 kW |
|
UPS output rated PF |
1.0 |
|
Max. no of parallel frames |
Up to 10 units |
|
Wiring |
3ph + N + PE |
|
UPS type |
Standalone tower |
|
Topology |
True online double conversion |
|
Input |
|
|
Nominal input voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage range |
150/204 - 264/460 VAC (load dependent) |
|
Frequency range |
35-70 Hz |
|
Current THD at 100% load |
≤ 3.5-4 % |
|
Power Factor at 100% load |
0.99 |
|
Output |
|
|
Rated output voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage THD (with linear load) |
<2% |
|
Frequency |
50 or 60 Hz (selectable) |
|
Efficiency |
|
|
Online double conversion |
Up to 96% |
|
Eco-mode |
99% |
|
Communications |
|
|
User interface |
Graphical touch screen (optional on 60-200 kW) |
|
Communication ports |
USB, RS-232, SNMP slot, potential-free contacts |
|
Software |
Monitoring and shutdown software available as option |
|
Compliancy |
|
|
Safety |
IEC/EN 62040-1 |
|
EMC |
IEC/EN 62040-2 |
|
Performance |
IEC/EN 62040-3 |
|
Manufacturing |
ISO 9001:2008, ISO 14001:2004 |
Technical specifications are subject to change without notice.
