GE Surge Protective Devices (SPD) feature a compact and economical design for use at medium exposure, distribution or branch panels.

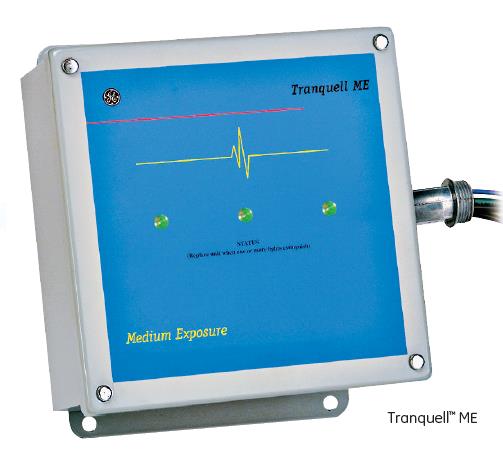

The Tranquell™ LE and ME Series are mounted in a NEMA 12 enclosure. An optional flushmount design and NEMA 4X enclosure are also available. Third-party tested per IEEE C62.62 and NEMA LS-1 for the rated 8x20μs surge current, per mode with fusing included. These units come standard with indicating lights and dry contacts. Ratings are available from 25kA – 100kA per mode, 50kA - 200kA per phase.

Features and Benefits

• Tranquell™ ME device tested to a minimum of 5,000 Category C3 impulses (10kA, 20kV) per mode

• Tranquell™ ME device tested to a minimum of 5,000 Longwave (10x1000μs) impulses per mode

• Tranquell™ LE device tested to a minimum of 3,500 category C3 impulses (10kA, 20kV) per mode

• Thermal fuse technology

• Form C dry contacts for remote monitoring

• Green status indicating LEDs per phase

• Standard heavy gauge painted steel NEMA 12 construction, available in surface or flushmount

• Durable fiberglass construction for NEMA 4X

Specifications

• Nominal Discharge Current (In) TLE 10kA

• TME 20kA

• Short Circuit Current Rating (SCCR) 65kA (30A breaker required)

• Operating Frequency 50/60 Hz

• Connection 10 AWG Conductors, Parallel Connected

• Operating Temperature -40° F to 149° F (-40° C to +65° C)

• Operating Humidity 0% to 95% Non-Condensing

• 5 year limited warranty (standard), 10 year limited warranty (optional)
