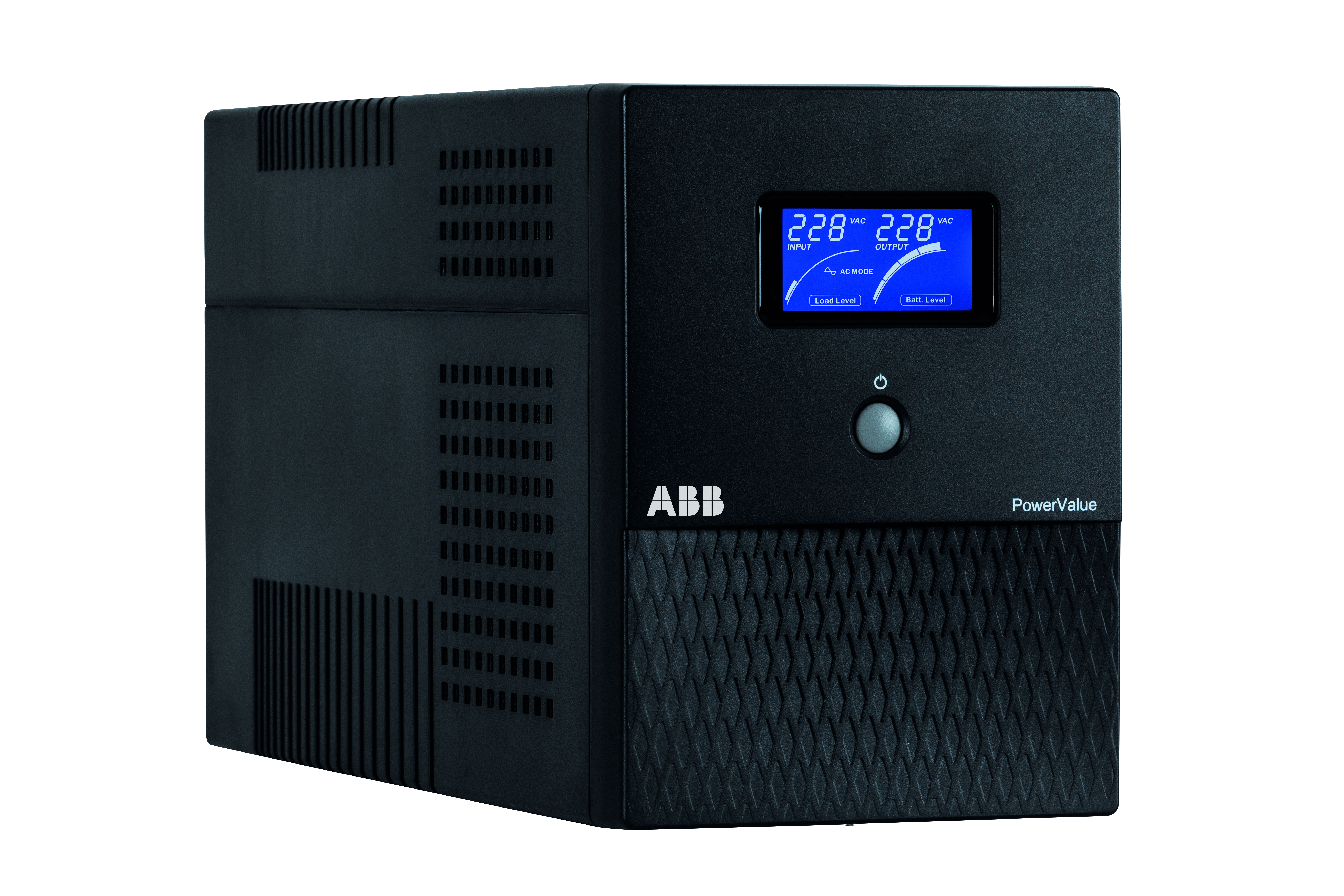

The ABB PowerValue 11LI Pro is a 600-2,000 VA line-interactive UPS designed for entry-level network applications. It delivers pure sinusoidal output voltage with 2-6 ms transfer time and up to 95% efficiency. Features include an intuitive LCD display, USB and RS232 interfaces, RJ11/RJ45 data line protection, cold-start capability, and user-replaceable batteries accessible from the front panel.
The ABB PowerValue 11 LI Pro combines compact online double-conversion UPS technology with lithium-ion battery packs, delivering a space-efficient, long-life power protection solution for modern IT and edge computing environments. Lithium-ion storage dramatically extends service life and shrinks both footprint and weight.
Available in a rack form factor for single-phase loads, the PowerValue 11 LI Pro is ideal for edge data centers, retail sites, and industrial IT cabinets where reduced maintenance, smaller size, and higher operating temperatures are key purchasing drivers.
| General Data | |
|---|---|
| Rated Power | 360W / 480W / 700W / 1,050W / 1,400W |
| Models | 600 VA / 800 VA / 1,000 VA / 1,500 VA / 2,000 VA |
| Topology | Line-interactive |
| Waveform | Pure sine wave |
| Input | |
| Nominal Input Voltage | 230 VAC |
| Input Voltage Window | 170 - 280 VAC |
| Input Frequency | 50 / 60 Hz |
| Output | |
| Nominal Output Voltage | 230 VAC |
| Output Voltage Tolerance | -17.1% / +15.5% (line mode), ±10% (battery mode) |
| Output Frequency | 50 Hz (60 Hz) ± 1 Hz |
| Transfer Time | 2-6 ms |
| Efficiency | >=95% |
| Battery | |
| Battery Type (600 VA) | 1x7.2 Ah |
| Battery Type (800 VA) | 1x8 Ah |
| Battery Type (1000 VA) | 2x7.2 Ah |
| Battery Type (1500 VA) | 2x8 Ah |
| Battery Type (2000 VA) | 2x9.4 Ah |
| Recharge Time | 6-8 hours |
| Runtime at 60% Load | 3'30" / 2'30" / 5'51" / 5'08" / 3'01" |
| Mechanical | |
| Weight (600/800 VA) | 6 / 6.6 kg |
| Weight (1000/1500/2000 VA) | 8 / 11.1 / 11.9 kg |
| Dimensions (600-800 VA) | 100 x 142 x 330 mm |
| Dimensions (1000-2000 VA) | 146 x 200 x 392 mm |
| Environmental | |
| Ambient Temperature | 0-40°C |
| Max Relative Humidity | 0-90% not condensing |
| Storage Temperature | -20 to 50°C |
| Communication | |
| Display | LCD display |
| Interfaces | USB, RS232 |
| Data Line Protection | RJ11/RJ45 |
