Secure your critical systems with the ABB PowerValue 11/31/33T G2 10-20kVA UPS, engineered for reliable power protection against outages and surges. This scalable 10-20kVA solution offers flexible controls, customizable configurations, and energy-efficient performance—ensuring seamless uptime for demanding environments. Trust ABB’s innovation to keep operations running smoothly.

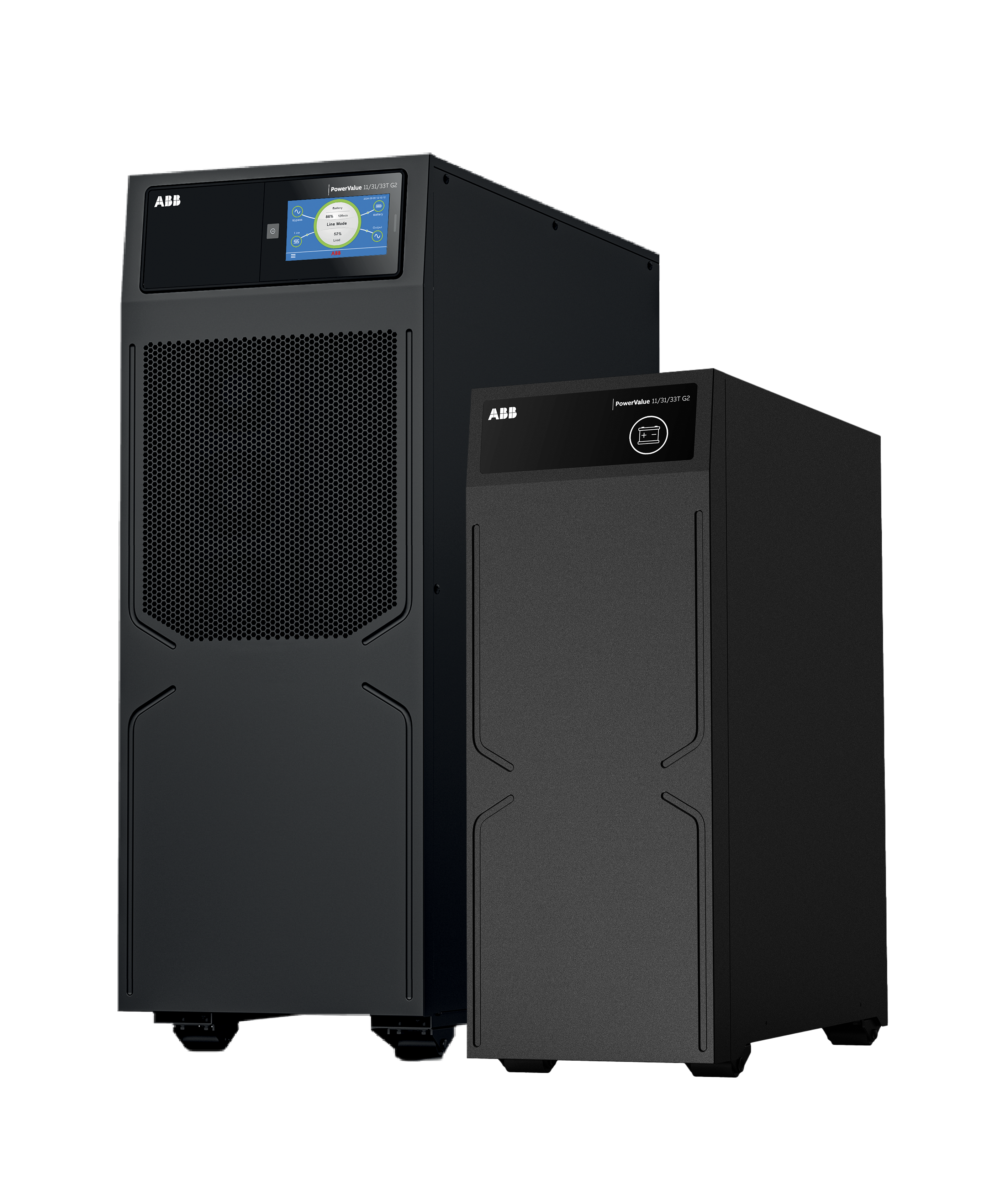

The ABB PowerValue 11/31/33T G2 is a transformer-based, three-phase input / single-phase output online double-conversion UPS engineered for industrial and infrastructure environments. It delivers fully regulated, sinewave output power that protects sensitive loads from every type of mains disturbance while providing galvanic isolation through a built-in output transformer.
Available in a 10-20 kVA range, the PowerValue 11/31 33T G2 is well suited to small industrial facilities, process automation cabinets, medical systems, and building services where robust isolation and long autonomy are required. Its rugged construction, user-friendly color display, and extended battery options make it a dependable cornerstone of critical power systems.
True online VFI topology continuously regenerates a clean, stable sinewave, shielding connected equipment from sags, swells, spikes, and frequency variations. Mission-critical loads see only perfectly conditioned power.
A built-in output isolation transformer provides a strong electrical barrier between utility and load, reducing common-mode noise and making the UPS ideal for medical, industrial, and safety-critical installations.

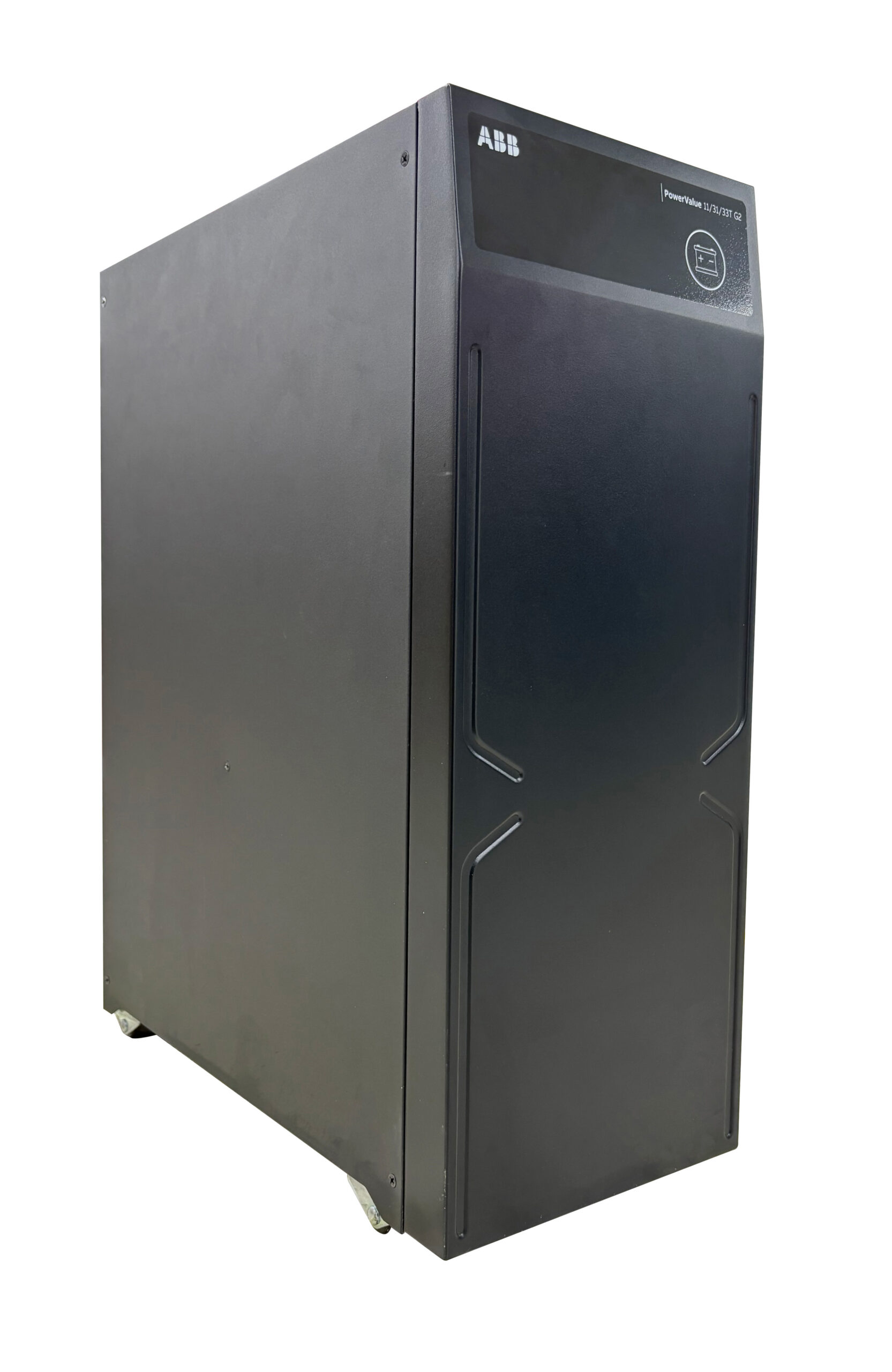

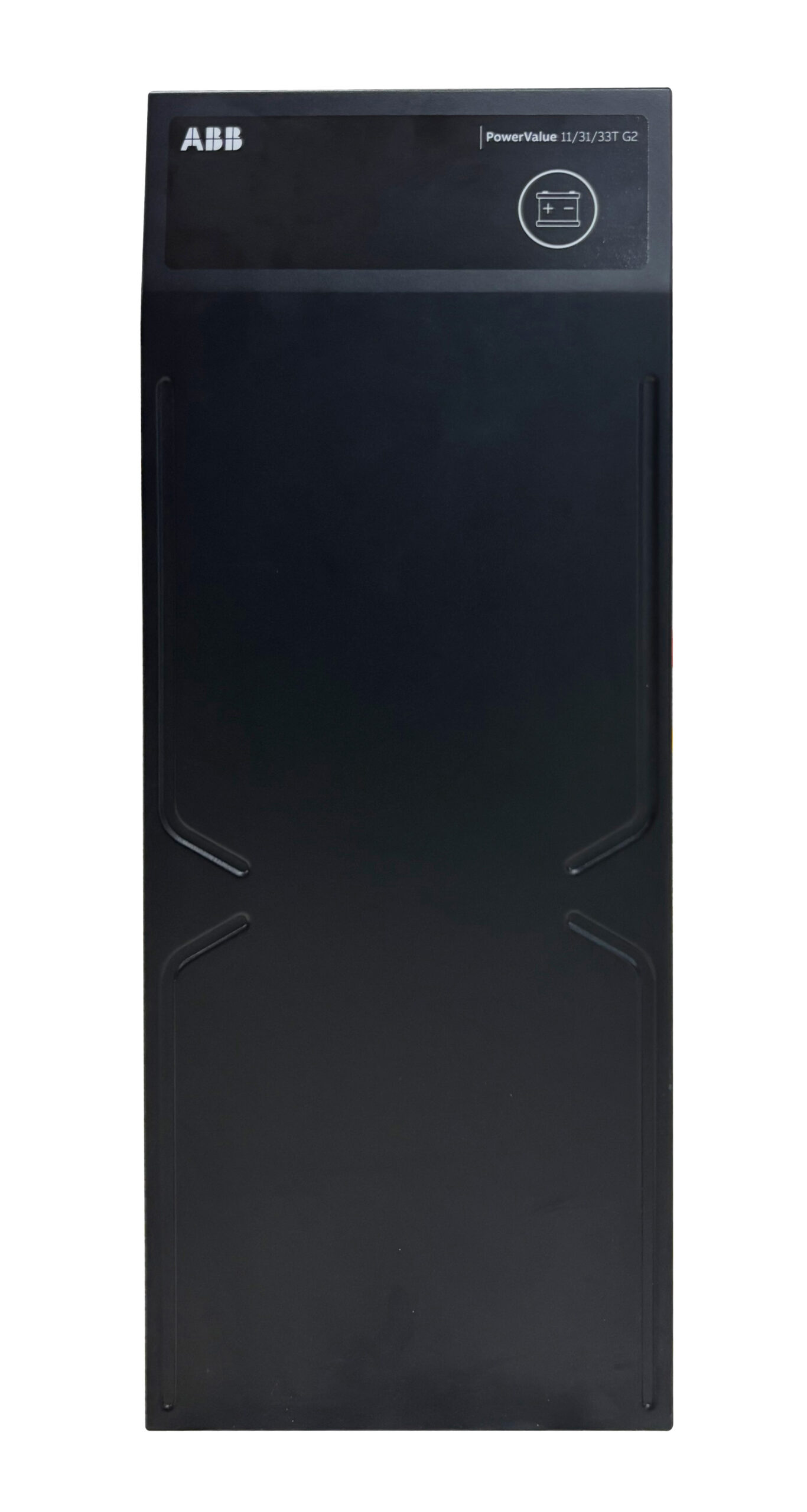

Optional external battery cabinets scale backup time from minutes to several hours, supporting applications where generator start-up is delayed or unavailable. Intelligent charging extends battery life and reduces replacement cost.
A clear LCD color display, multi-language menus, and comprehensive network communications (SNMP, Modbus, dry contacts) simplify monitoring, integration, and service across the fleet.
| General Data | |
|---|---|
| Apparent Power | 10kVA / 20kVA |
| Active Power | 10kW / 20kW |
| UPS Type | Online double conversion |
| Battery | Inbuilt |
| Overvoltage Category | Overvoltage category II |
| Mechanical | |
| Dimensions (W×H×D) | 300 x 805 x 726 mm |
| Weight (with batteries) - 10kVA B | 106 kg |
| Weight (with batteries) - 10kVA S | 53 kg |
| Weight (with batteries) - 20kVA B | 160 kg |
| Weight (with batteries) - 20kVA S | 55 kg |
| Acoustic Noise | |
| Normal Mode (≤25°C) at 100/50% Load | <55 dBA |
| Battery Mode (≤25°C) at 100/50% Load | <58 dBA |
| Safety & EMC | |
| Access | Operator |
| IP Rating | IP 20 |
| Compliant to IEC 62040-2 | Yes |
| Category Emission/Immunity | C3 |
| Environmental | |
| Storage Temperature (B model) | -15°C to +40°C |
| Storage Temperature (S model) | -25°C to +55°C |
| Operative Temperature | 0°C to +40°C (derating 50% at 40-50°C) |
| Relative Humidity | ≤95% (non-condensing) |
| Operating Altitude | 0~4,000m (1,000m without derating) |
| Input Characteristics | |
| Acceptance Voltage | 100-300 VAC (L-N) |
| Nominal Voltage | 220-240VAC (1P+N+PE) / 380-415VAC (3P+N+PE) |
| Frequency Rated | 50Hz/60Hz (selectable) |
| Frequency Tolerance | 45-55Hz (50Hz) / 54-66Hz (60Hz) |
| Rated Input Current (10kVA) | 65A 1P / 22A 3P |
| Rated Input Current (20kVA) | 129A 1P / 43A 3P |
| THDi | <4% @ 100% R Load |
| Power Factor | ≥ 0.99 @ 100% load |
| AC Distribution System | TN-S, IT, TN-C, TT |
| Phases Required | 3 phases or 1 phase |
| Connections | |
| Input Connection | 5 wires (3P+N+PE) or 3 wires (1P+N+PE) |
| Output Connection (10kVA) | 3 wires (1P+N+PE) |
| Output Connection (20kVA) | 5 wires (3P+N+PE) or 3 wires (1P+N+PE) |
| Cable Entry | Rear |
| Accessibility | Front and rear |
| Cabinet Color | RAL9005 |
| Air Outlet | Front to back |
| Options | |
| Network Management Card (NMC) | Yes |
| Temp & Humidity Sensors (EMP) | Yes (cooperate with NMC) |
| Modbus Card | Yes |
| Relay Card (AS400) | Yes |
| RS232 Cable | Yes |
| Gland Kit | Yes |
| Included (Default) | |
| Pre-installed Parallel Kit | Included |
| Sea Freight Packaging | Included (pallet, carton box) |
| Maintenance Bypass Switch | Included |
| Back-feed Protection | Internal (BF model) |
