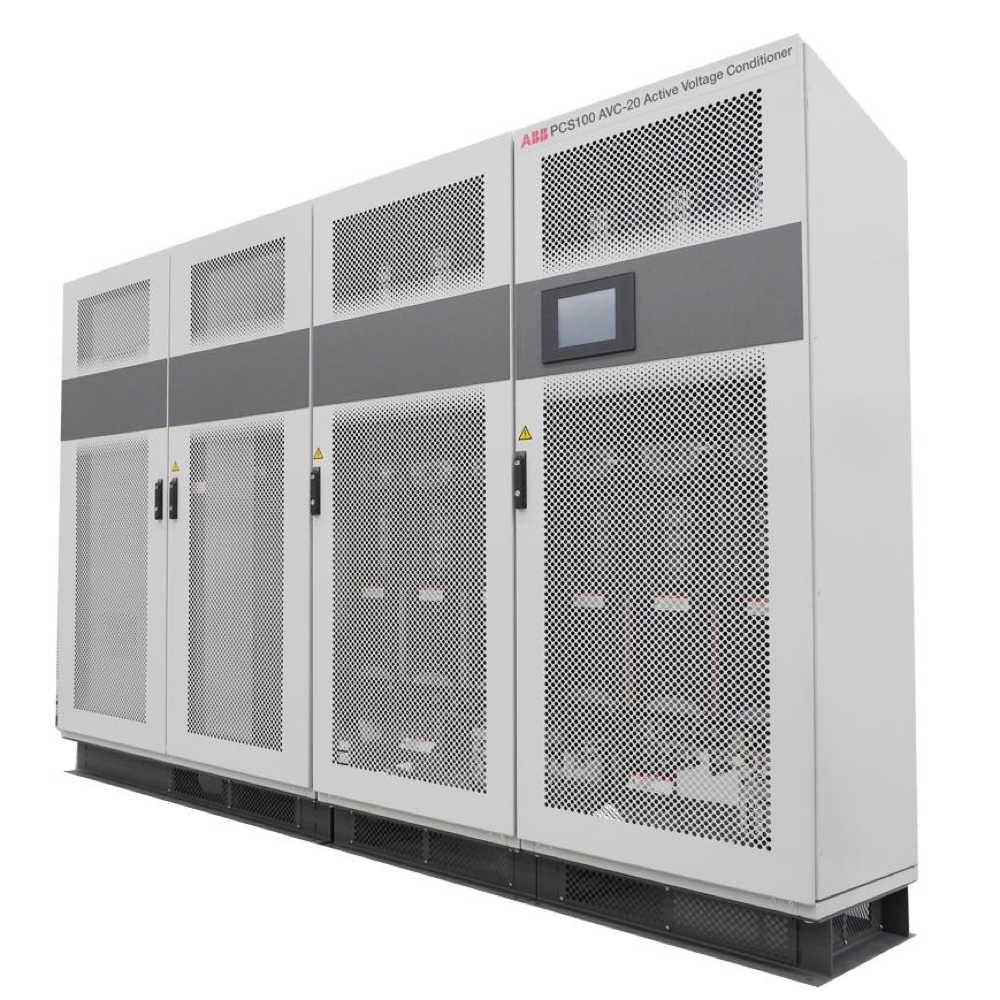

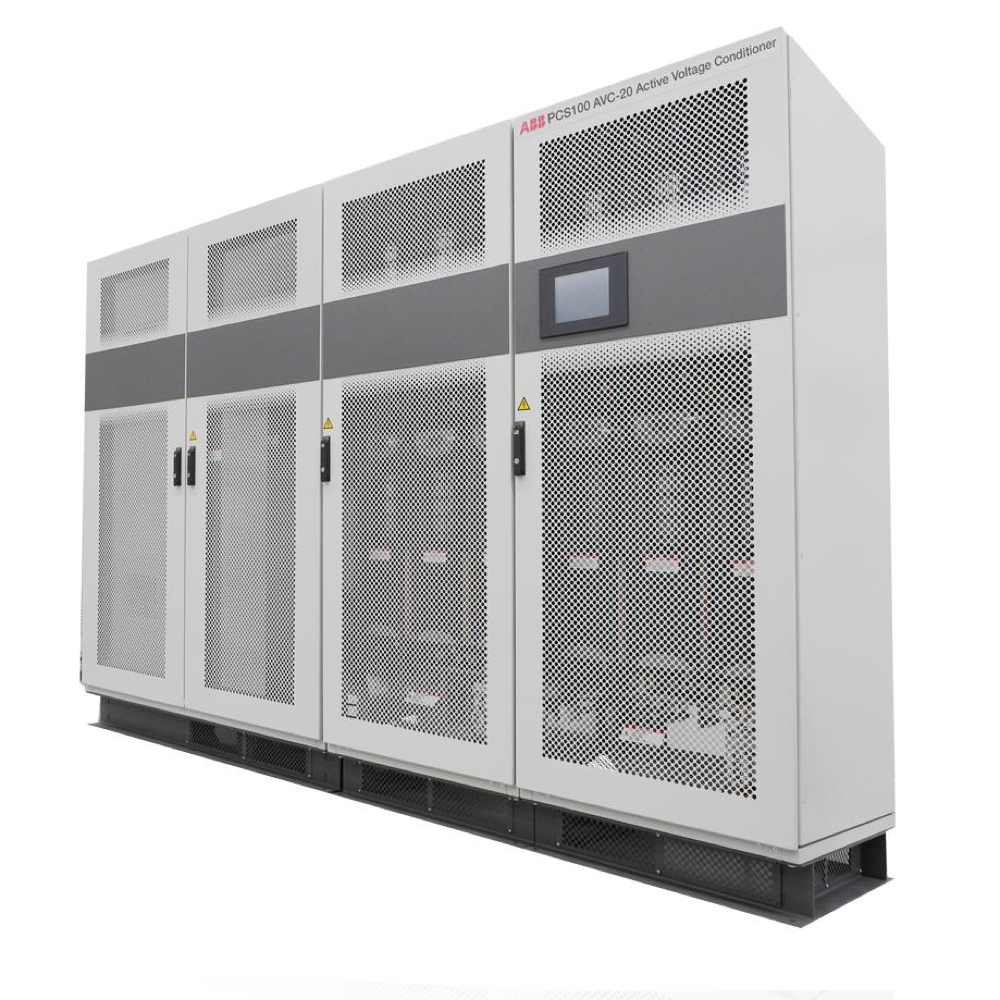

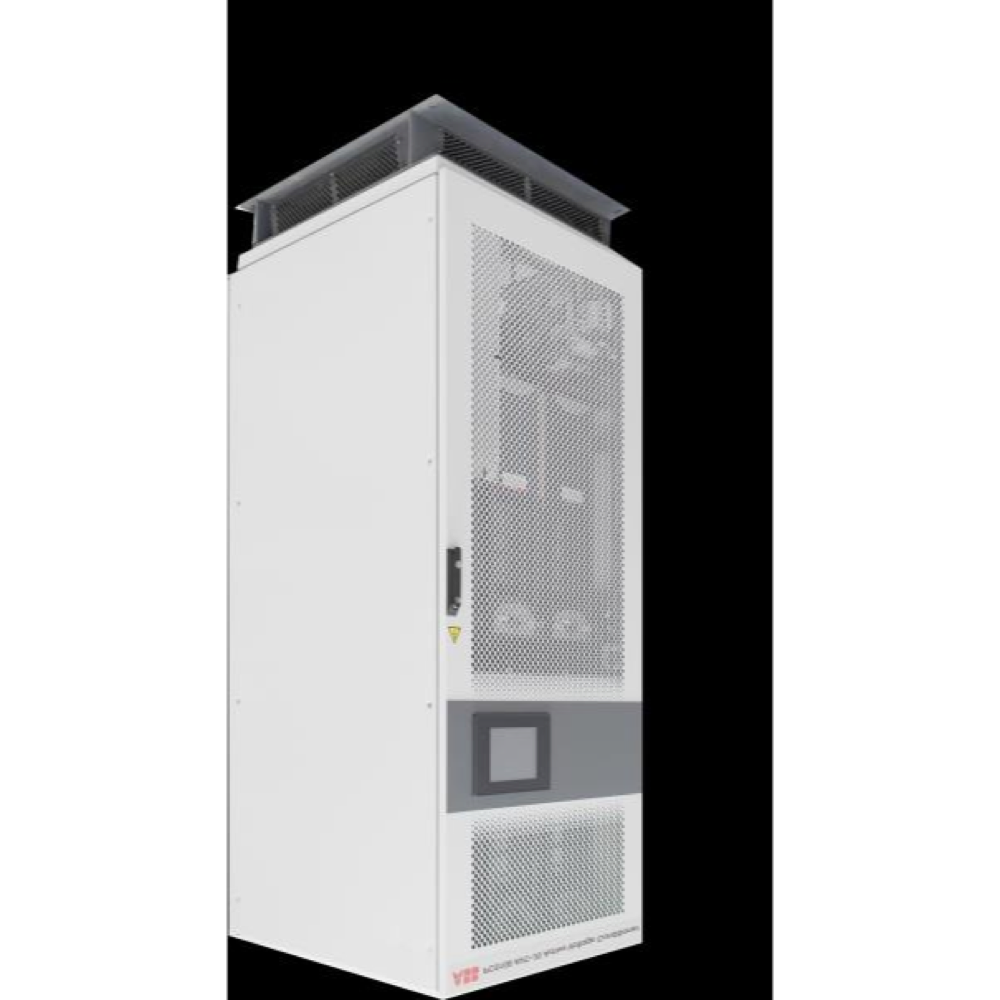

PCS100 ACV-20
Active voltage conditioner providing continuous ±20% voltage regulation with >99% efficiency and <250μs response time. Power range 250-3000 kVA for critical industrial applications.
The ABB PCS100 ACV-20 is an active voltage conditioner engineered to protect industrial processes from the voltage sags, swells, and transients that can disrupt modern manufacturing. Instead of storing energy in batteries, it uses advanced power electronics to inject the missing voltage back into the line in real time, keeping production running through brief but damaging grid events.
Ideal for semiconductor fabs, plastics, printing, textiles, and any continuous process, the PCS100 ACV-20 avoids the scrap, restart time, and revenue loss that typically follow even a sub-second power quality event.
| General Data | |
|---|---|
| Power Range | 250 - 3000 kVA |
| Rated Voltage | 400 V (application range 380 - 415 V) |
| Nominal Supply Frequency | 50 or 60 Hz |
| Power System | 3 phase + Neutral (4-Wire) |
| Efficiency | Typically > 99% |
| Input | |
| Frequency Tolerance | +/- 5 Hz |
| Max Continuous Supply Voltage | 130% |
| Overvoltage Category | III |
| Outage - Control Ride Through | 600 ms |
| Harmonics | IEC 61000-2-4 Class 2 (THDv < 8%) |
| Output | |
| Voltage | To match nominal input voltage |
| Displacement Power Factor | 0 lagging to 0.9 leading |
| Crest Factor | 3.0 |
| Overload Capability | 150% for 30 s, once every 500 s |
| Performance | |
| Voltage Variation Detection Time | < 250 us |
| Voltage Regulation Time | < 20 ms |
| Voltage Regulation Accuracy | +/-1% typical, +/-2% max |
| Continuous Undervoltage Range | -15% (PF 1.0) / -20% (PF 0.75) |
| Continuous Overvoltage Range | +20% |
| Environmental | |
| Operating Temperature | 0 to 50 deg C |
| Operating Altitude | < 1000 m without derating |
| Humidity | < 95%, non-condensing |
| Noise | < 75 dBA @ 2 m |
| Mechanical | |
| Enclosure Rating | IP20 |
| Material | Electro-galvanized steel |
| Color | RAL7035 |
| Communication | |
| User Interface | 10.1" color touch panel, multilingual |
| Communication | Ethernet, Modbus TCP, E-mail |
| Diagnostics | Non-volatile event & service log |
| Standards | |
| Safety | IEC 62103 |
| EMC | CISPR 11 Class A Group 1 / IEC 61000-6-2 |
| Performance | IEC 61000-4-34 |
| Quality | ISO 9001 |
