Ultimate modular UPS for data centers with hot-swappable 15/25/42 kW power modules, over 96.6% ON LINE efficiency, unity power factor, lithium compatible, multiple cabinet options and up to 1176 kW in parallel. Features 7-inch LCD touch screen and embedded network protocols.

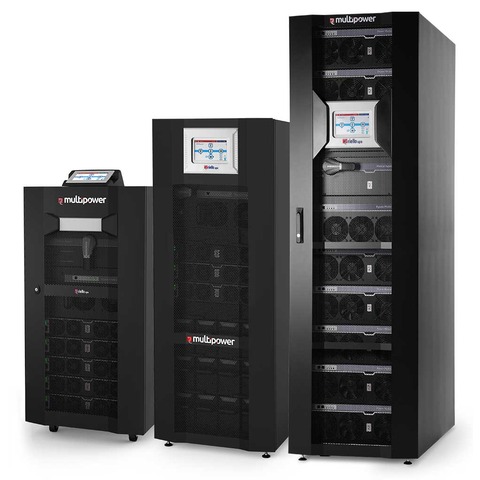

The Riello Multi Power is a modular three-phase online UPS designed for medium data centers and critical commercial facilities. Combining 42 kVA hot-swappable modules in a single cabinet, it delivers scalable power from 45 to 294 kVA with exceptional availability and efficiency.
Multi Power is an ideal fit for growing data centers, healthcare facilities, and enterprise IT rooms that need to align capital spend with load growth.
| General Data | |
|---|---|
| Power Range | 15 - 1176 kW |
| Output Power Factor | 1.0 (kVA = kW) |

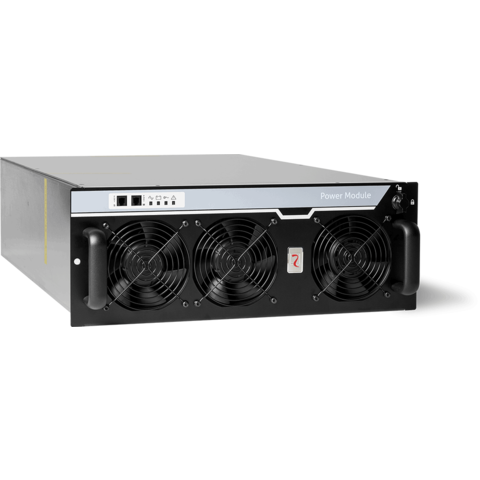

| Module Options | MPX 15 PM / MPX 25 PM / MPW 42 PM |
| Topology | Online double conversion, modular |
| Efficiency | > 96.6% |
| Input | |
| Input Power Factor | Near unity |
| Voltage Operating Range | +20%/-40% |
| Input Harmonic Pollution | Low |
| Rectifier | NPC inverter and PFC input control |
| Features | |
| Scalability | 1 to 20 MPX or 1 to 28 MPW modules |

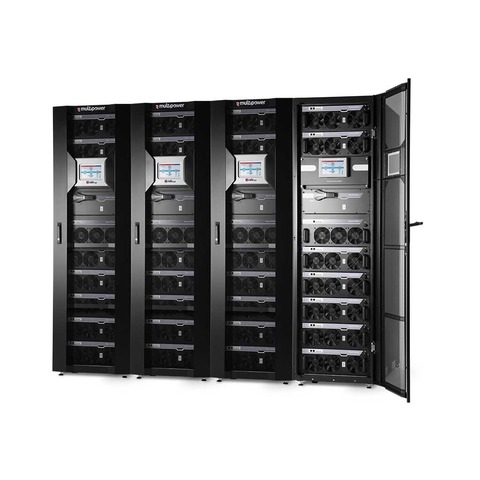

| Parallel Cabinets | Up to 4 Power Cabinets |
| Hot Swap | Hot-swappable power and battery modules |
| Battery Config | Centralised or distributed |
| Communication | |

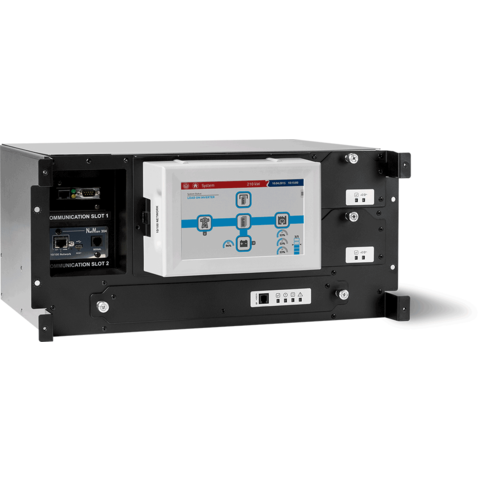

| Display | 7" LCD touch screen |
| Protocols | UDP, HTTP/HTTPS, SMTP, SNMP, Modbus/TCP |
| Network Card | NetMan 208 |
| Mechanical | |

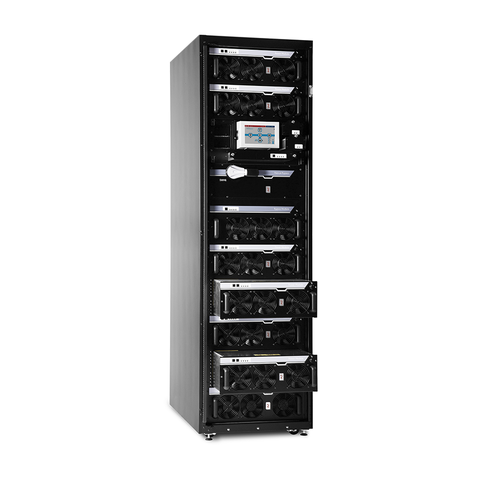

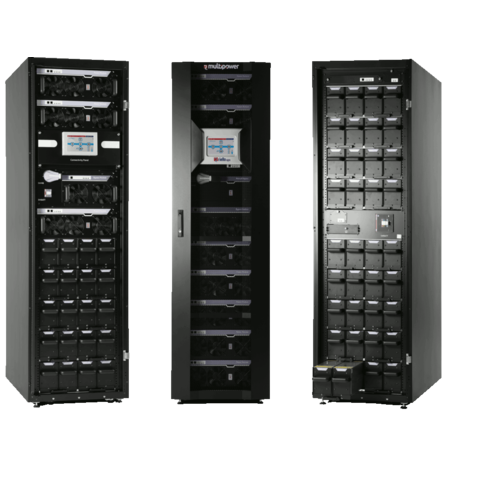

| Cabinet Types | MPX 75/100 CBC, MPW 130 CBC, MPX 130 PWC, MPW 300 PWC |

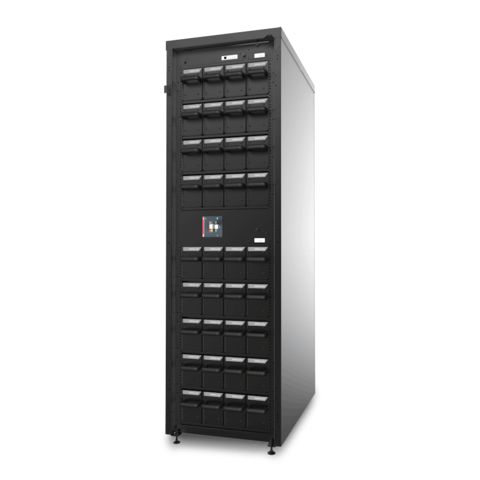

| Battery Cabinet | BTC with up to 36 battery units per frame |
