High-power modular 3-phase UPS, 250 kW core, up to 1500 kW, 97.4% VFI efficiency, Xtra VFI mode, DPA architecture with up to 4 systems in parallel.

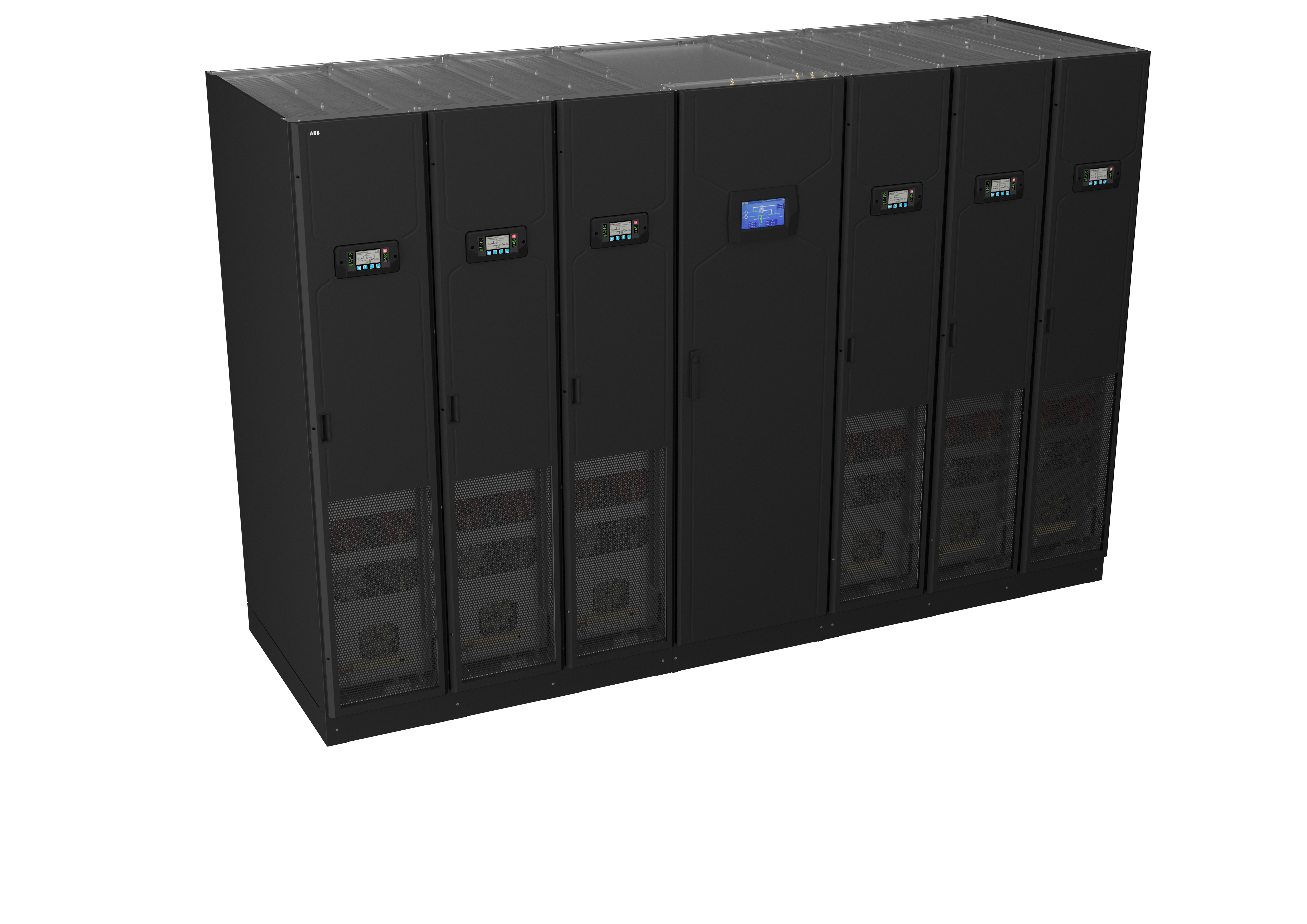

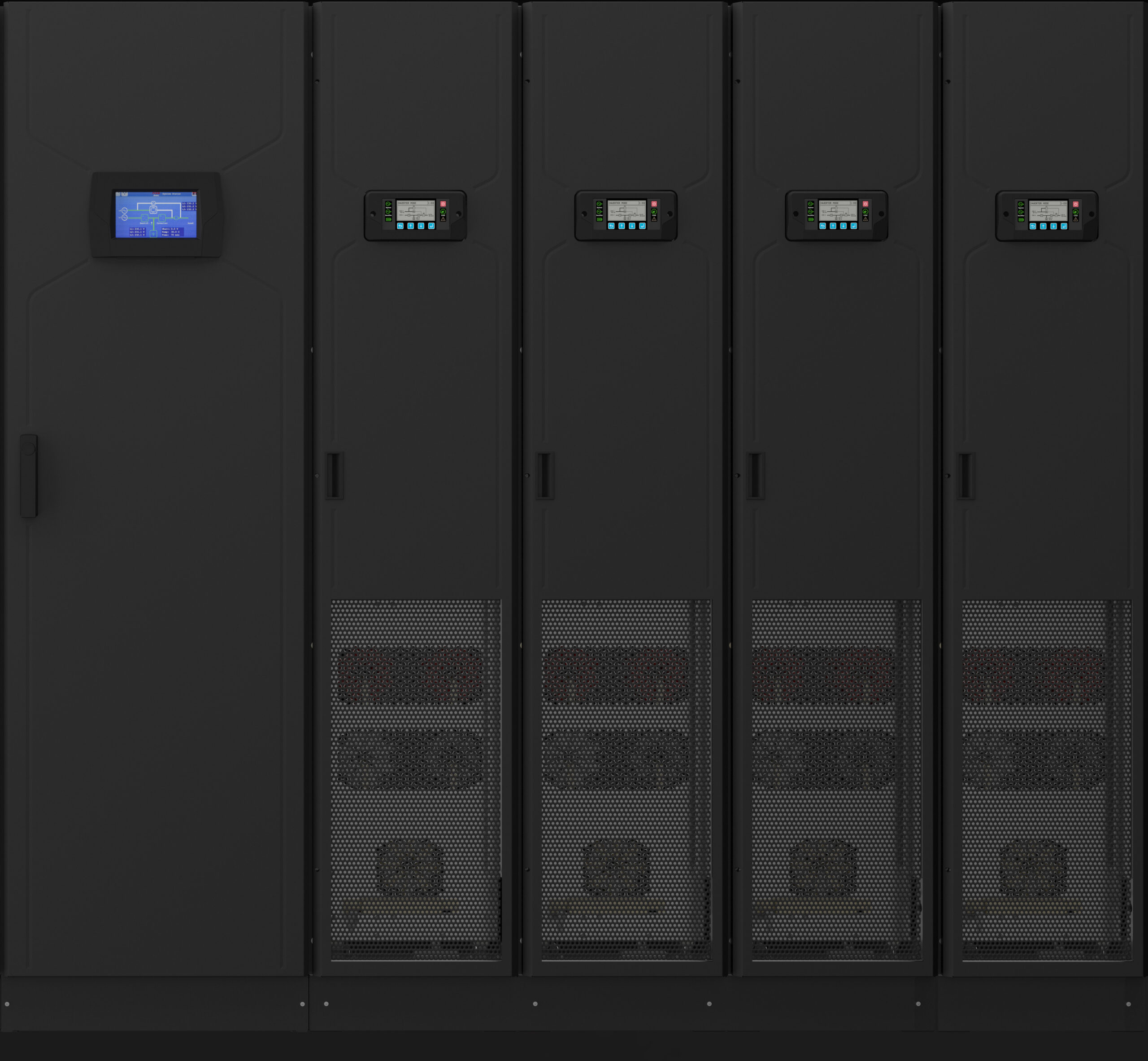

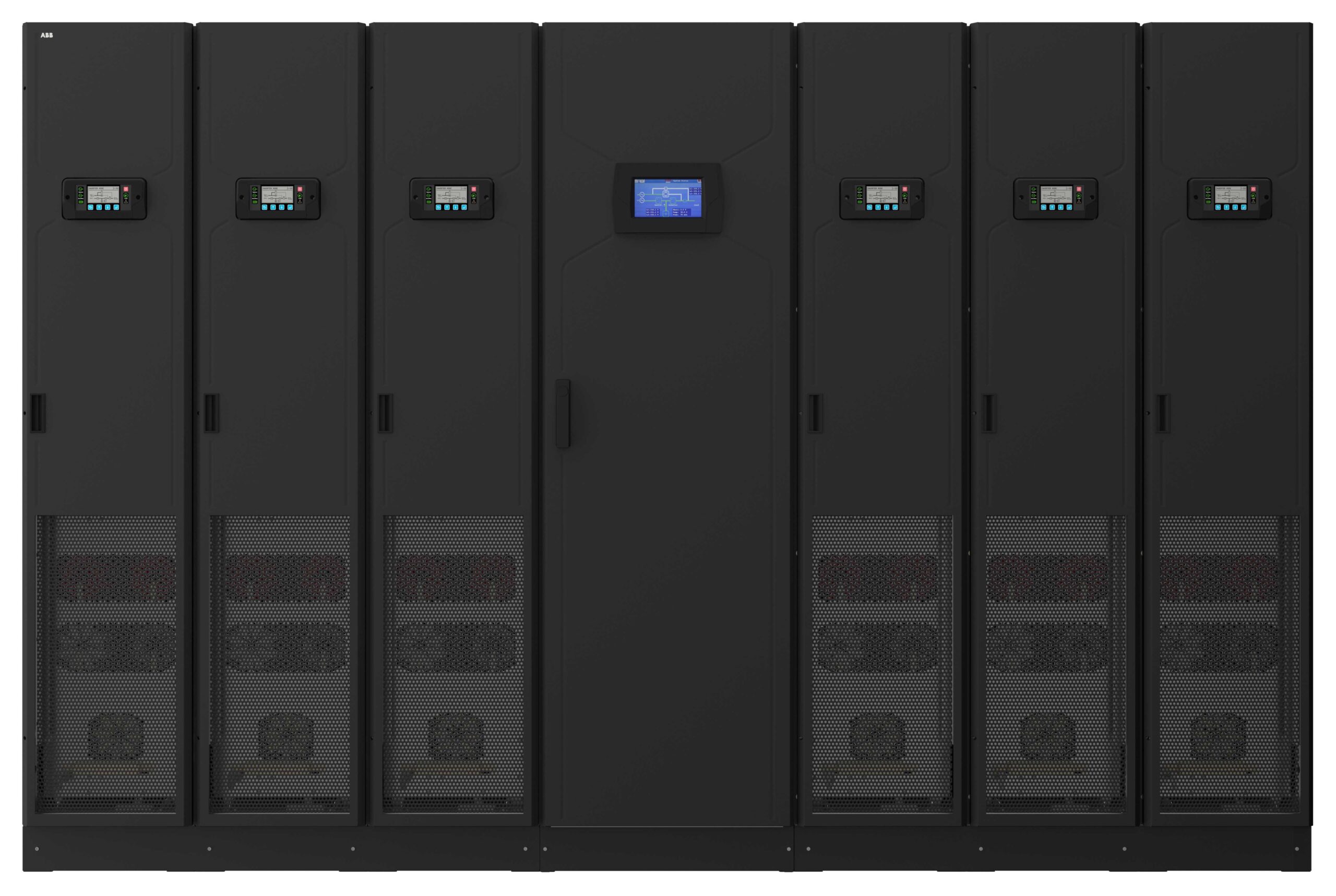

The ABB MegaFlex DPA is a very large-scale modular three-phase UPS designed for hyperscale, colocation, and large enterprise data centers. Built on a decentralized parallel architecture with 250 kVA hot-swappable power modules, it delivers up to 1.5 MVA per single frame and multi-megawatt capacity when paralleled.
MegaFlex DPA is engineered for the most demanding Tier III and Tier IV facilities, combining extreme availability, high efficiency, and very low total cost of ownership at scale.
| General Data | |
|---|---|
| Power Range | 250 kW - 1500 kW |
| Redundant Capacity | 1000 kW N+1 / 1250 kW N+1 |
| Topology | Online double conversion, DPA modular |
| Design Life | Up to 15 years |
| Performance | |
| Module Efficiency | 97.4% |
| System Efficiency | 97.4% in double conversion |
| Xtra VFI Mode | > 97% across wide operating range |
| Footprint Savings | Up to 45% |
| Features | |
| Architecture | Decentralized Parallel Architecture (DPA) |

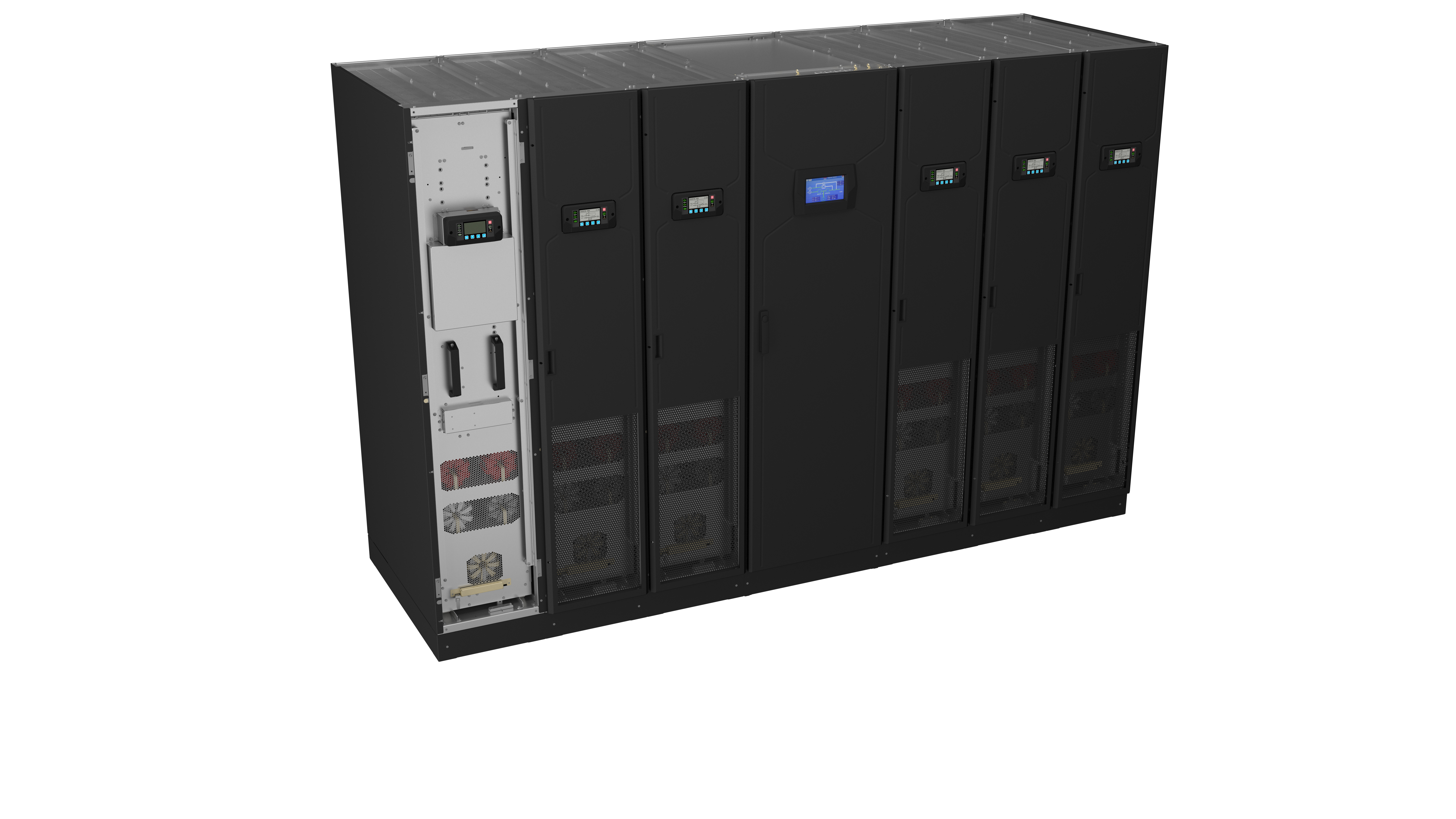

| Modularity | Online-swappable power modules |

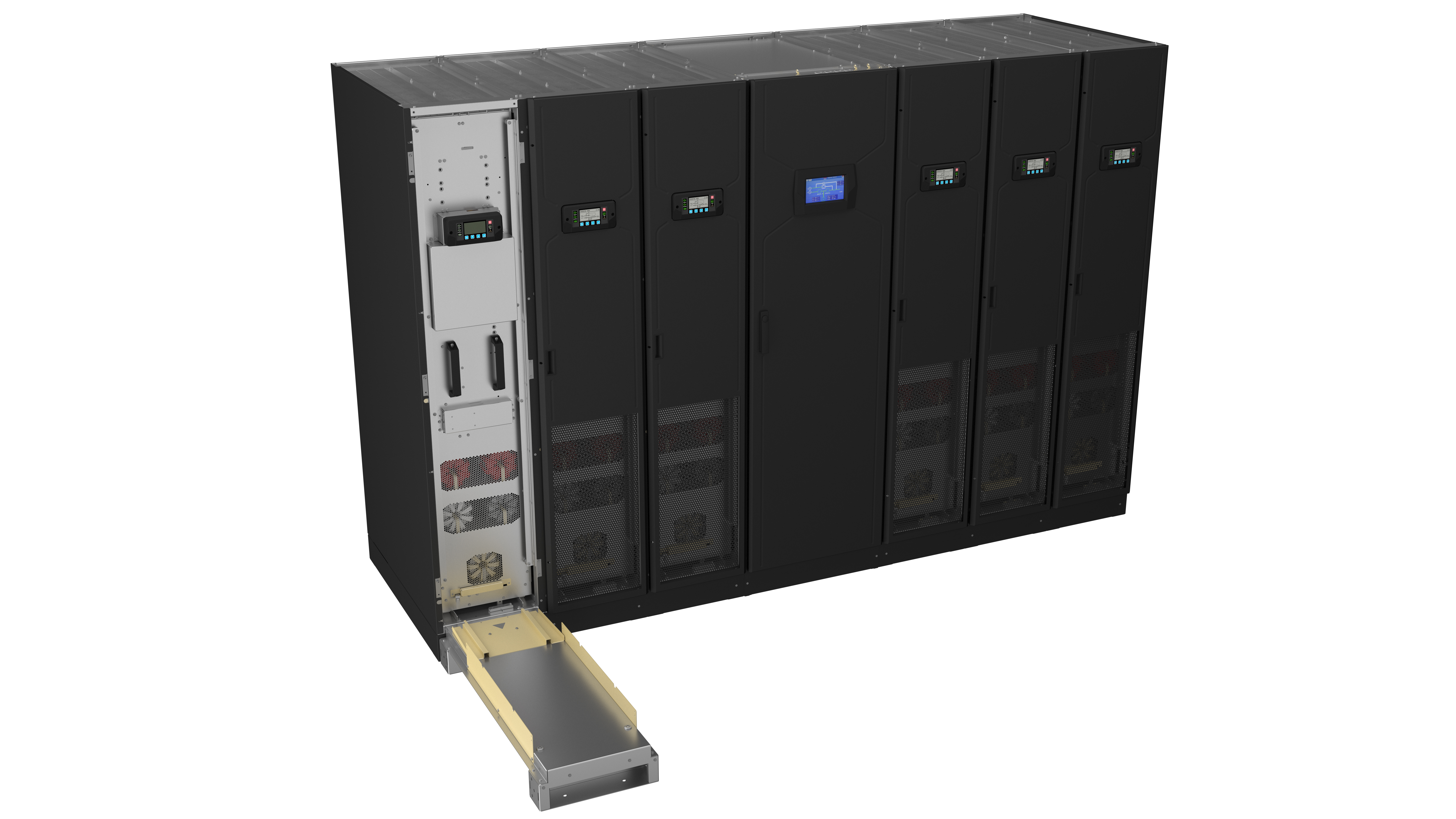

| Installation | Wire-free power frames, slide-in modules |
| Maintenance | Failsafe predictive maintenance |
| Communication | |
| Monitoring | Local and remote real-time monitoring |
| Display | Touchscreen display per system |
