Rectifier Chargers GR(B) 19 inch

Lượt xem : 1790
Đánh giá sản phẩm :

Rectifier Chargers GR(B) 19 inch (TECNED)

From 0.1kW to 50kW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

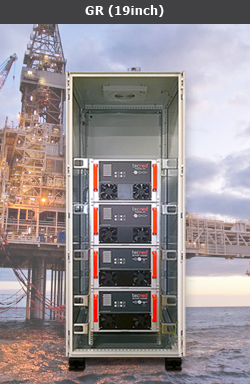

The GR (19 inch) series is an advanced rack-based charger in the TECNED GR product family available with central monitoring and control options. It strictly adheres to a truly industrial design and is built for 20 years operational life-time.

TECNED Industrial grade rectifier/chargers are based on transformer technology for robustness and endurance. The input isolation transformer protects the semiconductors against spikes, surges and filters noise. Transformer based rectifier/charger technology combined with blocking diodes in the output offer a longer service life and higher degree of protection of your critical load.

Based on this topology, TECNED provides a highly reliable charger / inverter product combination designed for demanding operating environments.

The availability can be further increased with 2 or more rectifier/charger modules in parallel operation mode. Like all GR-models, the GR(19inch) series is short circuit proof, includes current limit, high voltage protection and potential free contacts.

Features and Benefits

• High power factor IGBT/SCR conversion technology with very low input THDI and build-in galvanic separation transformer.

• Charging characteristic according DIN 41773 (UI)

• High reliable due to failsafe control system and protection circuits

• The availability can be further increased with 2 or more rectifier/charger modules in parallel operation mode

Specifications

• Input voltage single phase: 110 / 120 / 200 / 220 / 230 / 240 / 277V, (2W+E)

• Input voltage three phase: 208 / 220 / 240 / 380 / 400 / 415 / 480V, (3W+E)

• Input voltage range: + 15%/-20% (20% start battery operation)

• Nominal input frequency: 50/60 Hz

• Power factor: 0.98

• Efficiency: Up to 95% (depending on DC bus voltage)

• Nominal output voltage: 24, 48, 60, 110 (125), 220 (240), 380 Vdc

• Battery charging characteristic: IU (DIN 41773), T° compensated floating voltage

• DC voltage range: 24 – 380Vdc

• Float charge setting (Cell): 1.40-1.42V for Ni-cd or 2.17 -2.27V for Lead acid

• Output current I-nominal: 10A to 200A (depending on DC voltage level)
