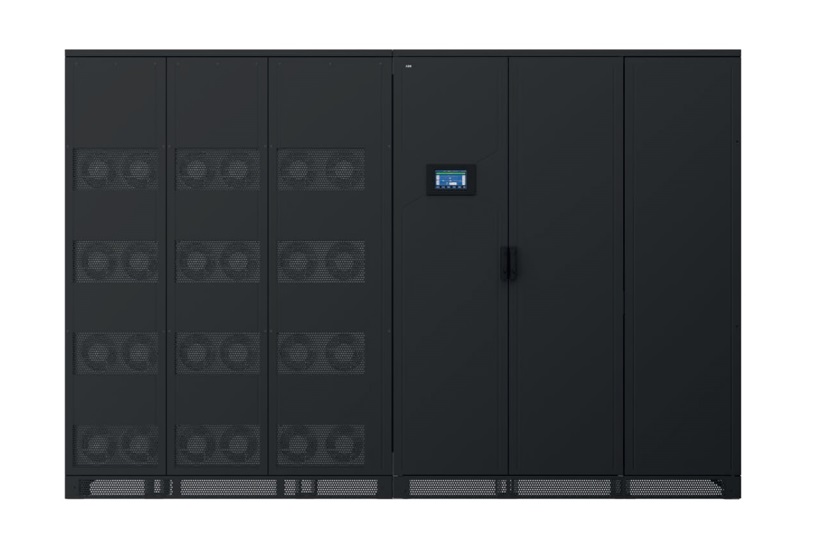

MegaFlex DPA
MegaFlex DPA
Three-phase modular UPS from 1000kW – 6000kW
MegaFlex DPATM is designed for critical high-density computing environments across private and public enterprise, as well as data centers for colocation, hosting cloud and telecommunications.
The modular UPS is based on ABB’s decentralized parallel architecture (DPA™). This innovative system means every UPS module is practically its own UPS with all the essential functional units needed for independent operation.
The on-line double conversion UPS provides the best power protection for your critical infrastructure from 250 kW to 1,500 kW.
|
General data |
|
|
UPS frame rated power |
1000 kW / 1500 kW |
|
UPS module rated power |
250 kW |
|
UPS output rated PF |
1.0 |
|
Max no of parallel frames |
Up to 4 frames |
|
Max no of parallel modules across frames |
Up to 24 modules |
|
Max system power |
6000 kW |
|
Wiring |
3ph + N + PE (4W), 3ph + PE (3W) |
|
UPS type |
Modular (DPA) |
|
Topology |
Online double conversion |
|
Input |
|
|
Nominal input voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage range |
30% at partial loads |
|
Frequency range |
35 – 70 Hz |
|
Current THD at 100% load |
<4% |
|
Power Factor at 100% load |
0.99 |
|
Output |
|
|
Rated output voltage (load dependent) |
220/380, 230/400, 240/415 VAC |
|
Voltage THD (with linear load) |
± 1% |
|
Rated frequency |
50 or 60 Hz (selectable) |
|
Efficiency |
|
|
Double conversion |
Up to 97.4% (50% rated load); |
|
Eco-mode |
Up to 99% |
|
Communications |
|
|
User interface |
Module level LCD + mimic diagram, system graphical display |
|
Communication ports |
USB, RS-232, programmable potential-free contacts, ABB network card |
|
Software |
Monitoring and shutdown software available as option |
